(A Practical Guide for Engineering Students)
You wrote your Verilog.
Simulation shows everything green.
Waveforms look beautiful.
No errors. No warnings.
But when the design goes to FPGA or silicon…
It behaves incorrectly.
If you are an engineering student, this is one of the most important lessons in digital design:
Simulation correctness ≠ Silicon correctness
Let’s understand why:
Simulation Is an Ideal World

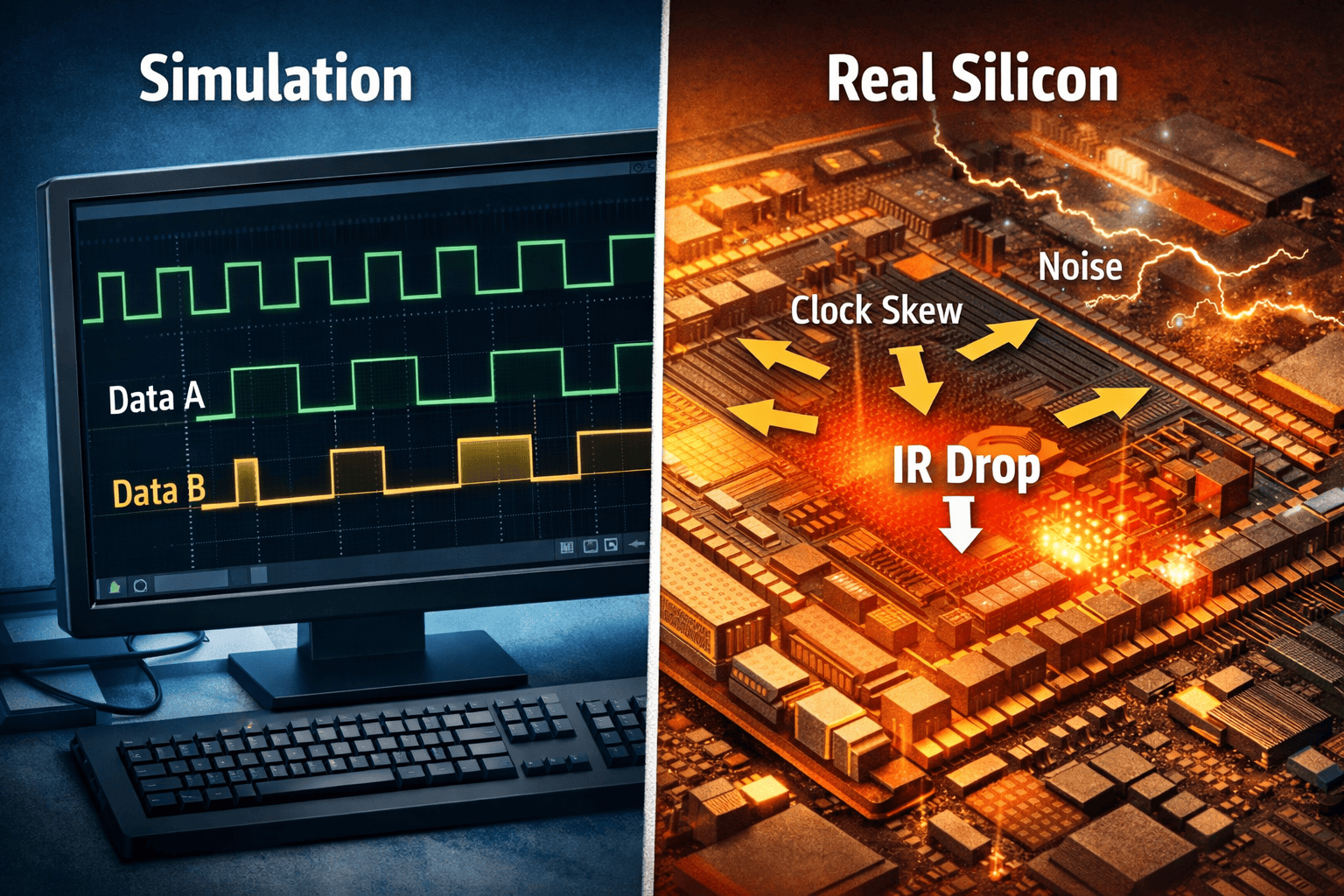

When you run RTL simulation, the simulator assumes a perfect universe:
No wire delay
No clock skew
No noise
No voltage drop
No metastability
But real hardware lives in the physical world.
Problem #1: Clock Domain Crossing (CDC)
Many beginners write something like:
But what if data_in comes from another clock domain?
In simulation:
✅ Works perfectly
In hardware:
❌ Random failures
❌ Intermittent bugs

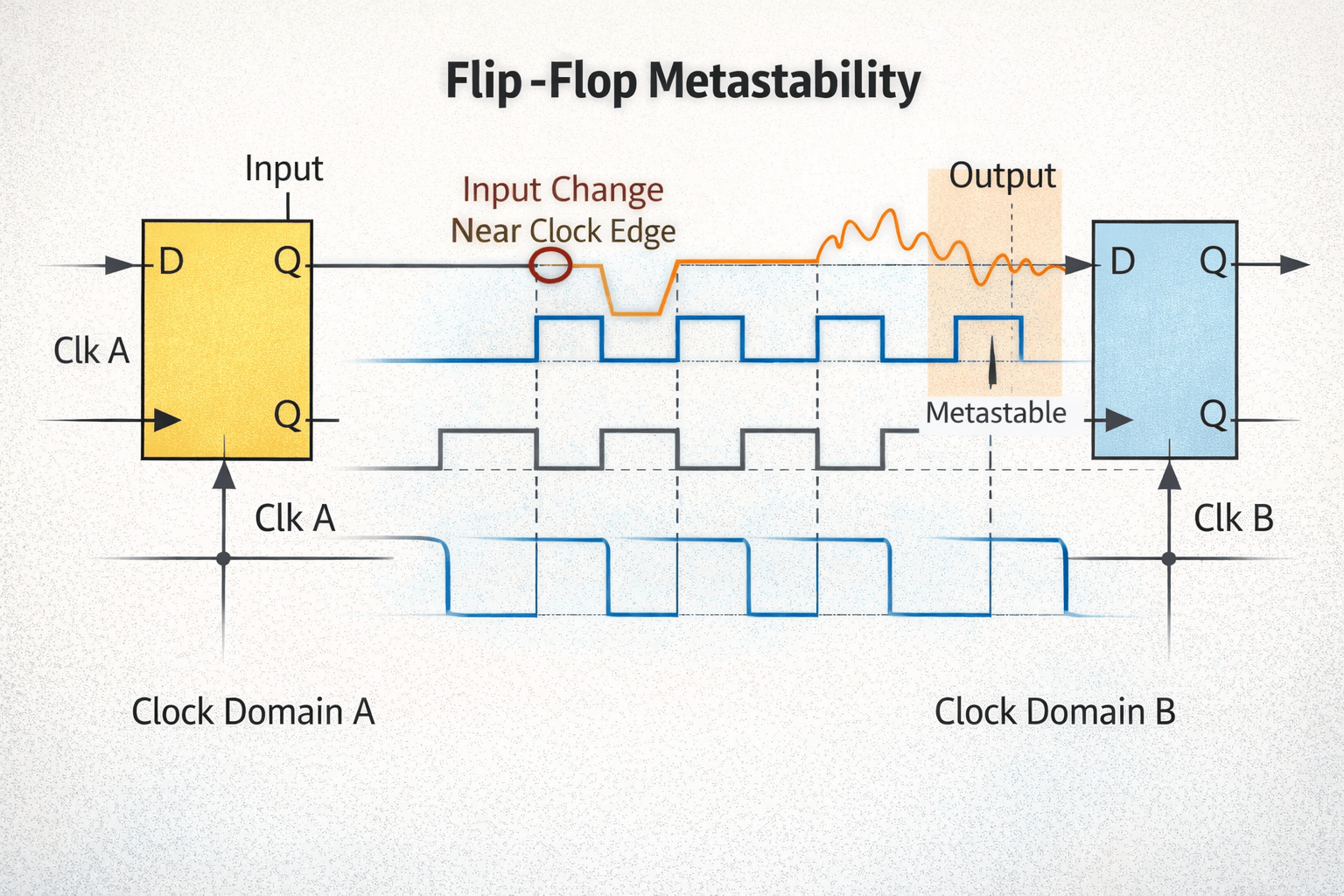

❌ Metastability
Because flip-flops are analog devices internally.
Problem #2: Zero Delay Myth
RTL simulation assumes gates are instantaneous.
In reality, every gate has delay:
-
AND gate delay
-
OR gate delay
-
Routing delay
-
Fanout delay
Example

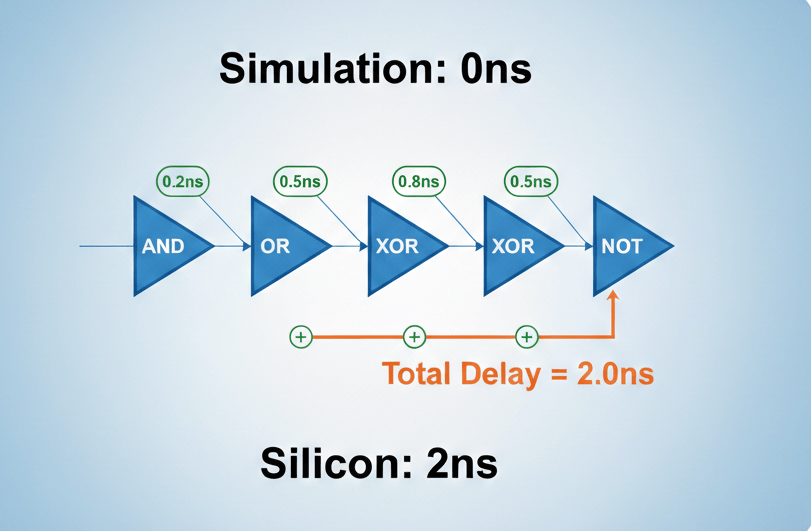

Your RTL path:
Simulation delay: 0 ns
Real silicon: maybe 2 ns
If your clock period is also 2 ns…
🚨 Timing failure.
❓ Problem #3: X-Optimism Trap
In simulation, uninitialized registers often appear as 0.
But in real hardware:
Flip-flops power up randomly
Memory contains garbage
Unknown states propagate
If you forgot proper reset logic…
Your chip may behave differently every power-up.
🔧 Problem #4: RTL vs Synthesized Hardware
Students often think:
“If RTL is correct, hardware must be correct.”
Not always.
During synthesis:
Logic is optimized
FSM encoding changes
Logic may be retimed
Clock gating inserted
The hardware structure becomes very different from your RTL.
RTL Labs was created to help students learn these practical aspects of chip design and gain the confidence needed for real-world semiconductor projects.
